Aircraft Fuselage Measurement System

6 Times Faster than Laser Radar System and fully Automated.

Twin Coast Metrology was approached by a customer with a large 20 x 40 foot cylindrically shaped fuselage segment. Their existing measurement methods would take upwards of 9 hours and required an expensive metrology specialist to collect data. We cut their measurement time down from 9 hours to  90 minutes with an easy to use interface that the mechanics could run themselves.

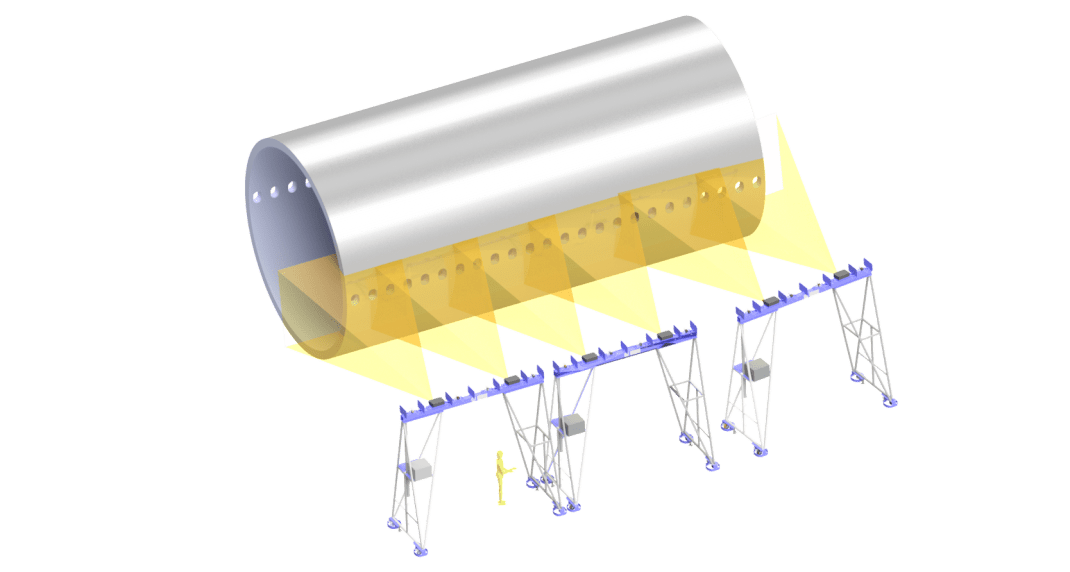

aircraft-fuselage-scanner

Notable Features

  • Portable system wheels up to an aircraft fuselage
  • 3D scans a 45’ long x 20’ tall fuselage
  • Modular gantries stack for storage
  • 12 cameras, 6 projectors
  • Each gantry is self-contained, including power supplies, networking, video
